DIR Exam Detail

The Exam Detail report provides data for an individual patient exam, such as the individual irradiation events, that would not otherwise be captured in other reports. Many facilities have found the report useful when researching an outlier.


The Scatterplot Over Time report is a good way to identify outliers by approximate date. Hovering over a data point provides extra details, including the study date, time, and description.


Once you know the study date and description, use the Exam Detail report filter to search for a list of exams for the correct modality (CT or Projection X-Ray) and date to locate information about the patient, such as gender and date of birth.


Click on the Detail button next to an exam to open the report details in a separate html window.



The Header and Patient Information sections provide the name of the referring physician, the technologist’s name and additional fields that might not otherwise be displayed in the reports, if these fields are reported by the facility.




Note: Because we do not collect social security numbers or patient names to maintain patient privacy, positively identifying a patient’s exam data may be difficult.

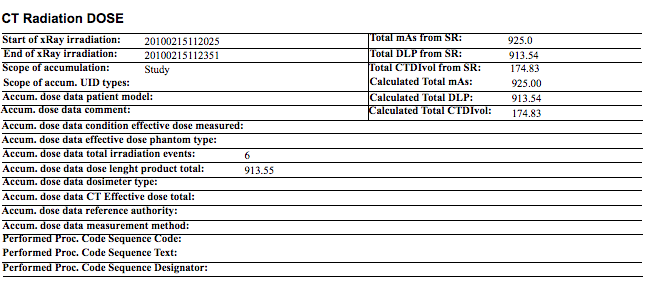

For CT modality exams , the CT Radiation Dose section summarizes data across irradiation events.




For Projection X-Ray exams , the Projection X-Ray radiation Dose section summarizes data across irradiation events.




The rest of the report details data for each irradiation event. Multiple irradiation events are each displayed in a separate section.





For CT modality you can also use the Export search results into Excel button to create and download a CSV file of all data for all records returned by the search. The file contains one row per irradiation event. You can use this option to create a spreadsheet and filter by the Total CTDIvol from SR column to find the exam with the highest value, and then click on the corresponding exam from the search results to get the html formatted report, as shown above.



Previous: Leapfrog ReportNext: Summary of Irradiation Events
